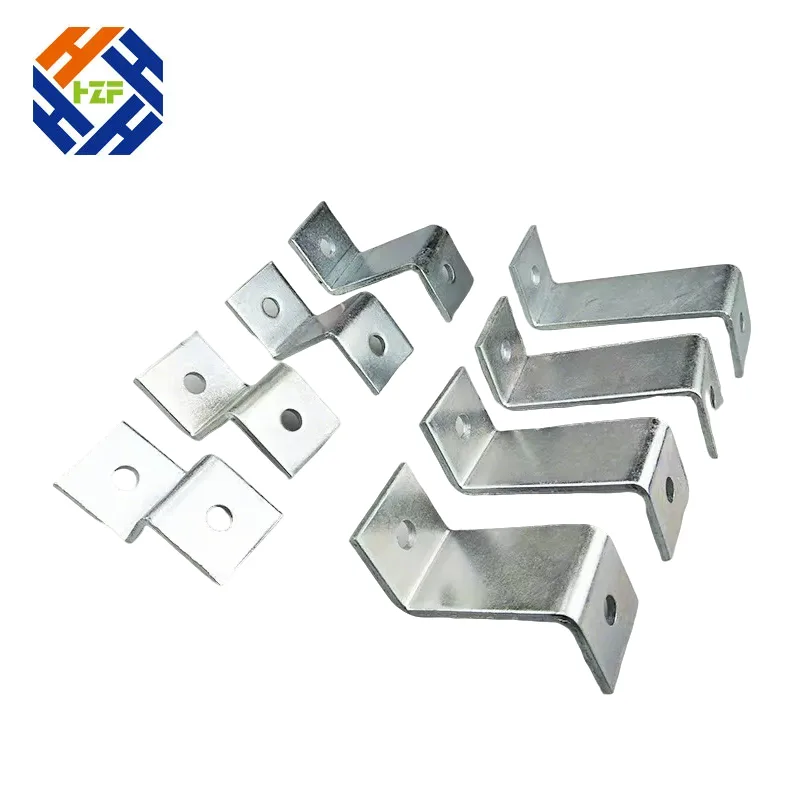

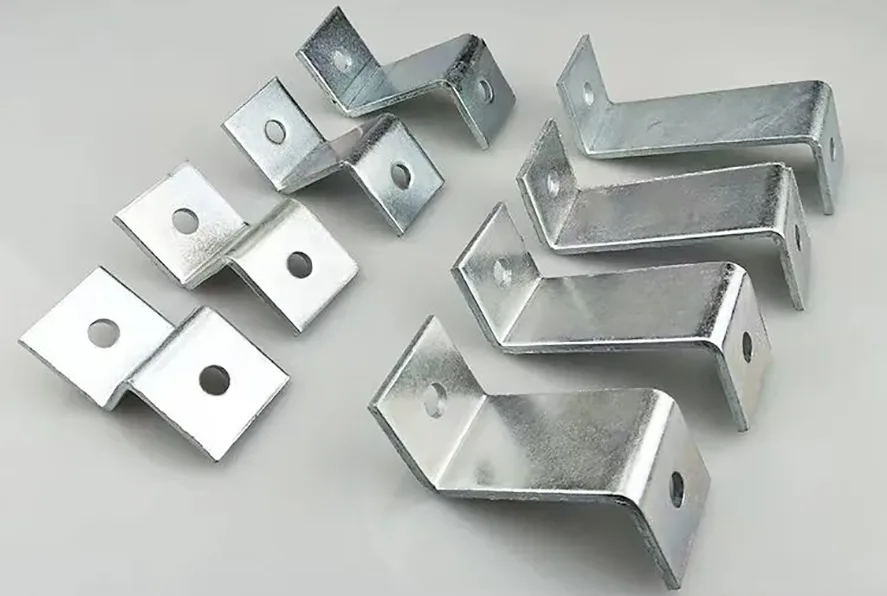

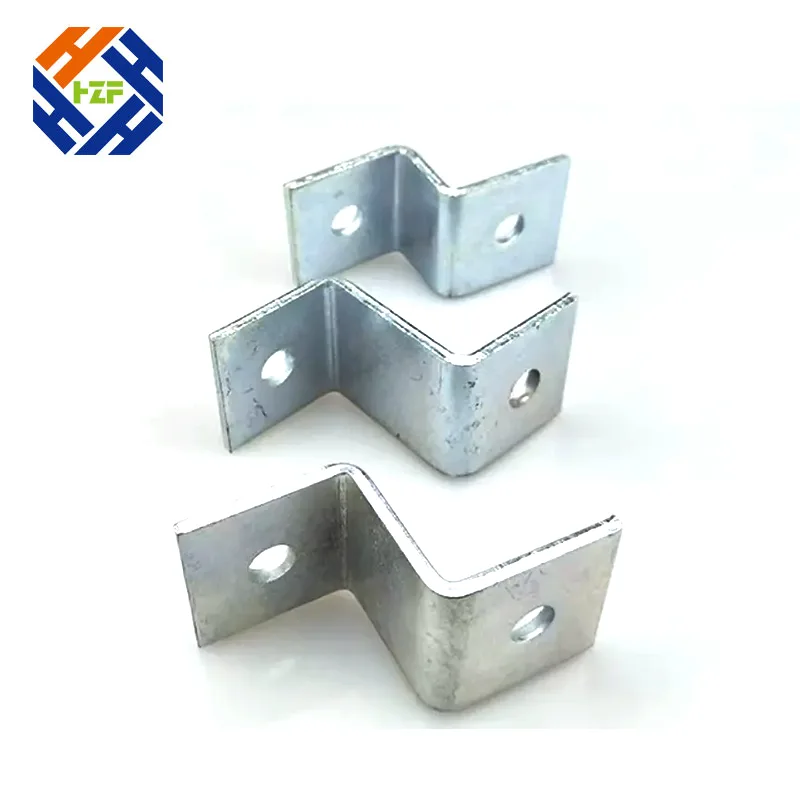

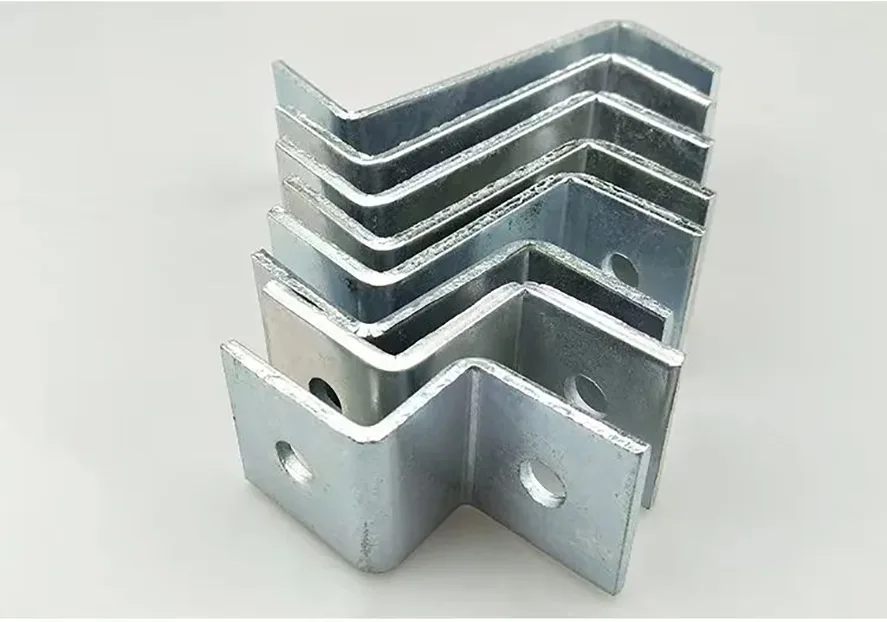

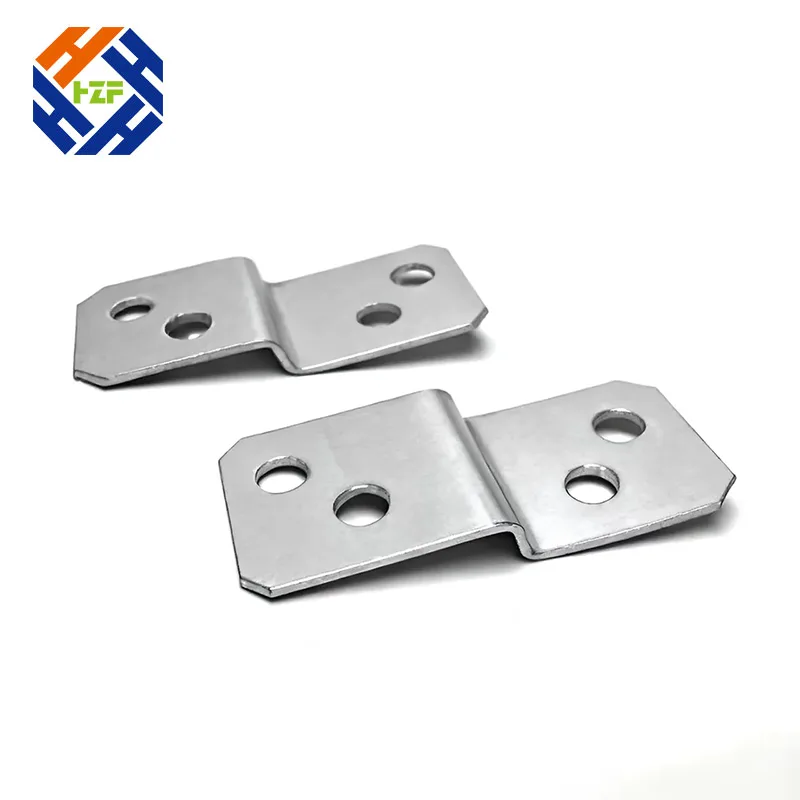

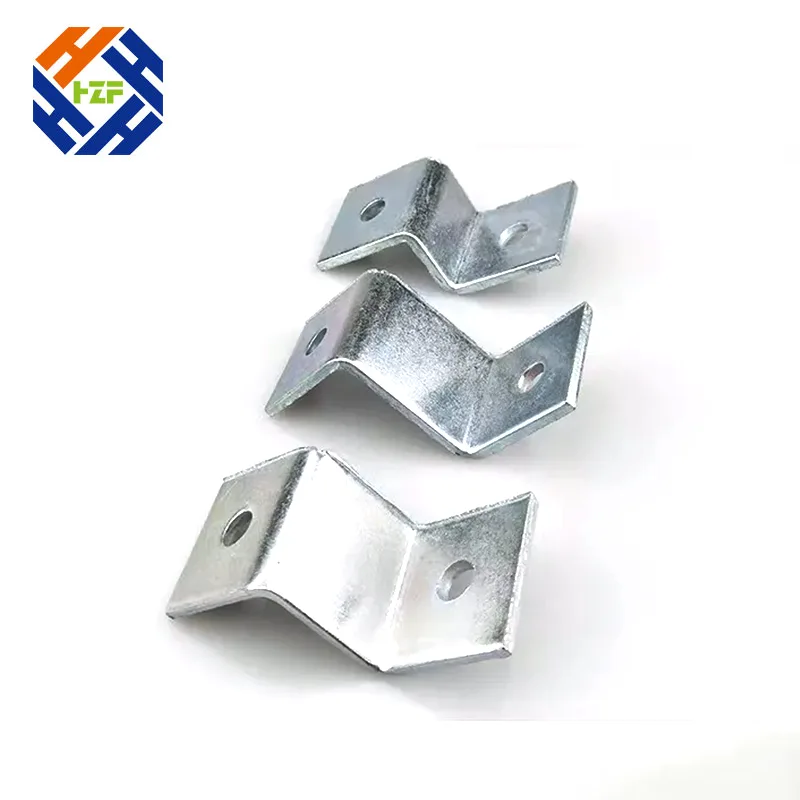

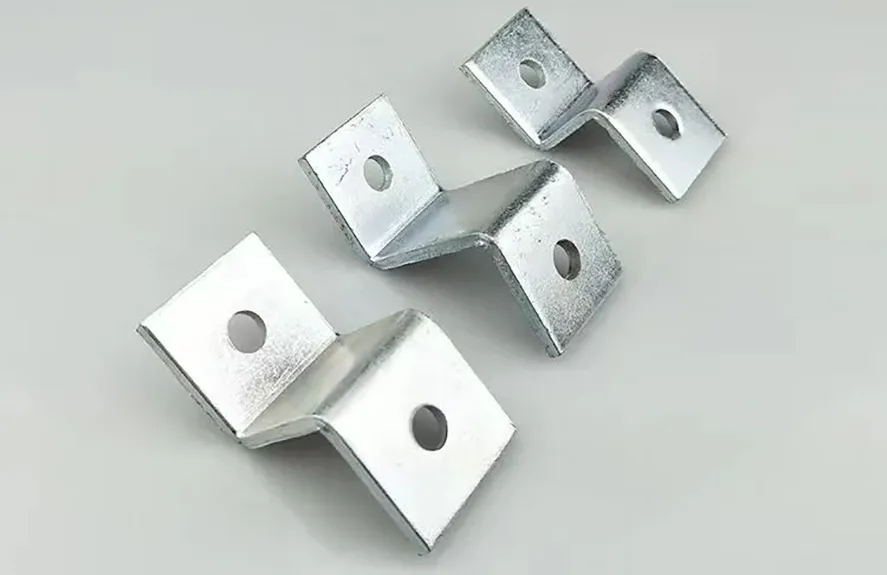

Z-shaped Metal Corner Brackets

Z-shaped corner brackets are a type of connecting hardware formed as a single piece through metal stamping, named for their cross-section which resembles the English letter "Z". They are typically made from materials such as cold-rolled steel, stainless steel, or aluminum alloy, and manufactured through processes like die stamping and bending. These brackets feature high dimensional accuracy, a stable structure, and high production efficiency.

Compared to traditional L-shaped brackets, the "Z" configuration of Z-shaped brackets provides dual-directional support rather than a single right-angle connection. This makes them adaptable for joining surfaces that are on different planes.

Haozhifeng® offer free samples, fast delivery, and reliable after-sales service. Wholesale our Z-shaped metal corner brackets to boost your brand's market competitiveness.

The Function of Z-Shaped Corner Metal Brackets

The core function of Z-shaped metal corner brackets is to connect two metal stamping parts that are not on the same plane. They bridge height gaps between components, enabling secure assembly and preventing connection loosening due to planar misalignment.

Relying on the rigid structure formed by stamping, these brackets distribute and transfer the weight and load of the components, enhancing the overall structure's load-bearing capacity and preventing deformation or breakage at the connection points.

The "Z" shape helps restrict the horizontal or vertical displacement of laminated materials, improving post-assembly stability.

The one-piece stamped design requires no additional welding or secondary machining. They can be directly secured using screws or rivets, reducing installation time and labor costs.

Application And Application Methods of Stamping Brackets Parts

1. Furniture Manufacturing Industry

Dislocated connection of laminates for wardrobes, cabinets and bookshelves, bracket fixation of office desks and chairs, support and reinforcement of sofa frames.

Install Z-shaped metal corner brackets at the dislocated joints between the back panels and side panels of wall cabinets. Fix the flanges with screws, which not only ensures the load-bearing capacity of the laminates but also hides the connectors to enhance the aesthetics of the furniture; use stainless steel Z-shaped corner metal brackets to strengthen the connection at the junction of the backrest and seat of office chairs.

2. Fixation of Doors and Windows

Connection between sashes and frames of aluminum alloy doors and windows, frame.

Install galvanized Z-shaped corner brackets at the dislocated parts between the sliding rails and door frames of aluminum alloy sliding doors to enhance the load-bearing capacity of the sliding rails and prevent sliding rail deformation during sliding.

3. Home Appliances and Electronic Equipment

Internal bracket fixation of refrigerators and air conditioners, cabinet reinforcement of washing machines, connection of wall-mounted brackets for displays.

For the connection between the refrigerator compartment shelf brackets and the inner liner, lightweight aluminum alloy Z-shaped metal corner brackets are adopted, which not only meet the load-bearing requirements but also reduce the overall weight; at the junction of the indoor unit hanging plate of the wall-mounted air conditioner and the wall expansion screws, use Z-shaped corner brackets to adjust the height difference to ensure the air conditioner is level and non-inclined after installation.

4. Automotive and Transportation Equipment

Fixation of automotive interior panels, frame splicing of truck cargo boxes, component connection of electric vehicle frames.

For the dislocated connection between the support structure of the automotive door panel interior and the car body sheet metal, lightweight stamped Z-shaped corner brackets are used to reduce the car body weight while ensuring connection strength; at the junction of the side panels and bottom panel of the truck cargo box, high-strength galvanized Z-shaped corner brackets are used for reinforcement to improve the anti-vibration capability of the cargo box.

The Z-shaped metal corner brackets are made of high-strength steel or aluminum alloy materials. On the premise of ensuring load-bearing performance, the product weight is reduced by optimizing the section thickness.

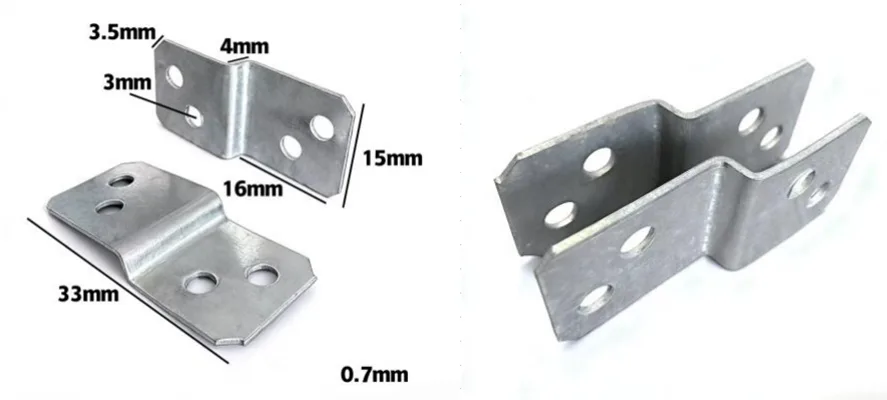

Specification

The Design Features of Z-shaped Metal Corner Brackets

The Z-shaped corner metal brackets are formed in one piece by stamping process, with no welding seams and strong structural integrity. Compared with welded parts, they are more fatigue-resistant and less likely to break, while reducing production process costs.The two upper and lower parallel flanges and the middle vertical connecting plate form a stable structure, which can bear both horizontal and vertical pressure simultaneously.

The Z-shaped metal corner brackets can be customized with different flange lengths, thicknesses and hole diameters according to different application scenarios.

After stamping, the corner brackets can undergo surface treatments such as galvanizing, plastic spraying and anodizing to meet anti-corrosion requirements in different environments. For example, corner brackets used for outdoor curtain walls adopt hot-dip galvanizing treatment, while those used for indoor furniture adopt plastic spraying treatment to enhance aesthetics.

The Z-shaped metal brackets are made of high-strength steel or aluminum alloy materials. On the premise of ensuring load-bearing performance, the product weight is reduced by optimizing the section thickness.You can choose the material according to your application environment, the stainless steel for outdoor corrosion resistance, aluminum alloy for lightweight needs, and cold-rolled steel for cost-effective indoor use. For more details, you can contact with info@hzfcasting.com.

FAQ

Q1: What materials are your Z-shaped stamping brackets made of?

A1: Our Z-shaped stamping brackets are mainly made of cold-rolled steel, stainless steel, and aluminum alloy.

Q2: Can you customize the size and thickness of the Z-shaped metal corner brackets?

A2: Yes, Haozhifeng® fully support OEM/ODM customization.

Q3: What surface treatments are available for your Z-shaped stamping brackets?

A3: Common surface treatments include hot-dip galvanizing, powder coating, coating, and anodizing. Hot-dip galvanizing is suitable for outdoor heavy-duty applications, while powder coating offers a variety of colors for indoor decorative needs.

Q4: What is the MOQ and lead time for Z-shaped stamping brackets?

A4: We don’t have a MOQ. For custom products, you only need to pay for the mold fee and shipping costs.
