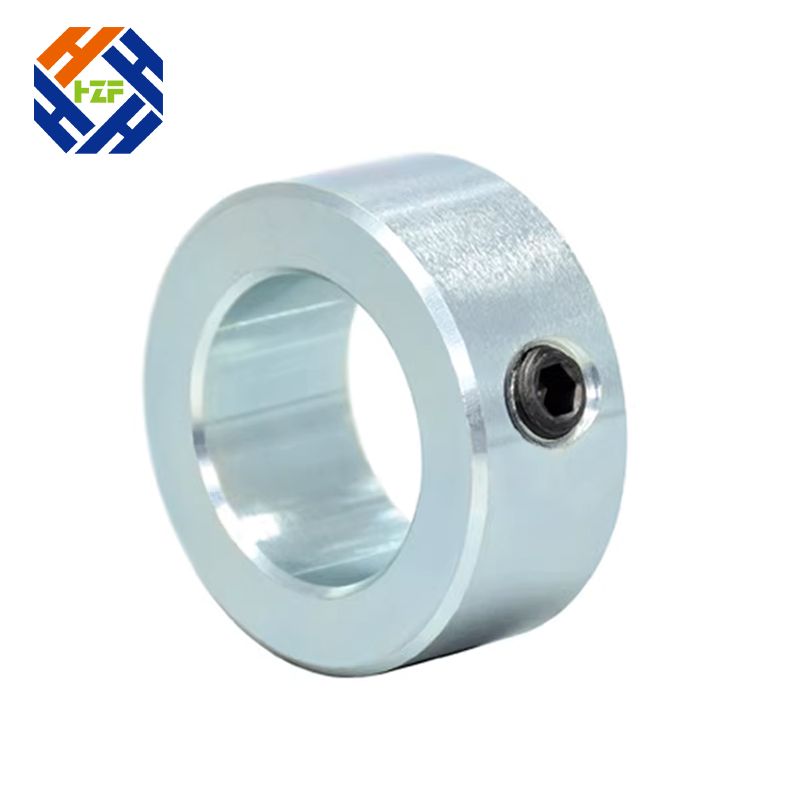

Machining Shaft Collar with Set Screw is a precision machined component used to position, retain, or locate parts on a shaft. Designed for secure mounting, this shaft collar includes a M8, M10 threaded set screw that firmly locks the collar in place. Whether you need a lightweight aluminum option or heavy duty carbon steel, we’ve got you covered.
The machining Shaft collar with set screw is manufactured using high-precision CNC machining technology to provide a reliable clamping solution for shafts of various sizes. The cnc shaft collar is available in carbon steel, stainless steel and aluminum, with surface treatments including zinc plating, black oxidation and anodizing.
The shaft collar with screw is an important component for mechanical positioning and axial fixation, designed to provide reliability in harsh industrial environments. The collar is manufactured using precision CNC machining technology to firmly fix the shaft without causing surface damage. Its simple and efficient set screw design (M8, M10, etc.) makes installation simple while ensuring strong locking force.
It is suitable for automation systems, linear guides, drive components and mechanical fixtures, is compatible with various shaft diameters, and is available in different materials and surface treatments.
Inquire now to get a custom quotation for your CNC Machining Shaft Collar and enjoy factory-direct pricing!
| Item | Description |
| Product Name | Machining Shaft Collar with Set Screw |
| Material | Carbon Steel, Stainless Steel (304/316), Aluminum |
| Inner Diameter Range | 5mm to 100mm (customizable) |
| Thread Size | M4, M5, M6, M8, M10, M12 (custom thread available) |
| Outer Diameter | As per customer drawing or standard size |
| Thickness | Typically 8mm – 30mm |
| Surface Finish | Zinc Plated, Black Oxide, Polished, Anodized |
| Tolerance | ±0.01mm |
| Mounting Type | Hex Socket Set Screw |
| Manufacturing Process | CNC Turning & Milling |
| Application | Mechanical shafts, linear motion, automation systems |
Product Feature
Our Machining Shaft Collar with Set Screw is engineered to provide high performance, precision, and long term reliability. Below are the standout features that make it a preferred choice in the global market:
1. Precision CNC Machining: Ensures consistent inner bore diameter, surface flatness, and concentricity – key for all precision shaft collar applications.
2. Multiple Thread Sizes: Standard M4, M5, M6, M8, M10, and M12 available – compatible with various set screw shaft collar requirements.
3. High-Strength Materials: Choose from steel shaft collar for strength, aluminum shaft collar for lightweight needs, or stainless steel shaft collar for corrosion resistance.
4. Secure Locking Mechanism: The set screw firmly locks the collar onto the shaft without slipping, ideal for locking shaft collar functions.
5. Customizable Design: OEM/ODM accepted – we are a shaft collar manufacturer who can tailor every detail to your project.
6. Surface Finish Options: Zinc plated, black oxide, polished, or anodized finishes improve wear resistance and appearance.
7. Fast Assembly and Removal: Quick to install and reposition, perfect for maintenance-heavy environments.
Application Industries
The Machining Shaft Collar with Set Screw plays a key role in mechanical assemblies where axial positioning, spacing, or stop limits are required. Thanks to its versatility and strong clamping force, it is widely used in various industries:
1. Automation Equipment – Ensures accurate shaft positioning in CNC systems
2. Linear Motion Systems – Acts as a hard stop or bearing spacer
3. Conveyor Systems – Secures sprockets, gears, or rollers in place
4. Robotics – Provides adjustable limits and mechanical support
5. Agricultural Machinery – Used for shaft locking and wheel positioning
6. Medical Devices – Applied in clean, corrosion-resistant environments (stainless steel version)
7. Packaging Machinery – Holds components in fixed axial positions during high-speed operations
Haozhifeng provides you with customized shaft collars and standard shaft collars with screws for general machinery.
As a professional shaft collar manufacturer, we operate a modern CNC machining facility equipped with advanced turning and milling centers, thread forming tools, and automatic surface finishing lines. With over 15 years of experience in precision parts production, we serve industries ranging from mechanical engineering to robotics and automation.
In-house CNC Machining: Full control over accuracy and lead time
1. Strict Quality Control: Every collar is inspected before shipment
2. Flexible Customization: Size, thread (M4–M12), material, and finish options
3. Global Shipping Support: Fast delivery to over 50 countries
4. OEM/ODM Capability: Add your logo or part number on request
Let our factory be your trusted partner for long term shaft collar supply.
Quality Control & Inspection
We strictly follow international quality standards to ensure each Machining Shaft Collar with Set Screw meets customer expectations. Quality Steps:
1. Material Inspection: Raw materials undergo chemical and mechanical analysis
2. Dimensional Check: Using CMM (Coordinate Measuring Machine) and digital calipers
3. Thread Accuracy: Threads checked with GO/NO-GO gauges (M8, M10, etc.)
4. Surface Quality: Salt spray test for anti-rust surface coating
5. Final Inspection: 100% visual check and random sampling based on AQL standards
Our factory is ISO 9001 certified and experienced in producing custom shaft collars for global clients.
Packaging & Shipping
Each Machining Shaft Collar with Set Screw is carefully packed to prevent damage during transit.
1. Individual packaging in poly bags or foam wrap
2. Bulk packaging in strong cartons or wooden crates
3. Labels with part number, logo, or barcode available on request
4. Shipping options: DHL, FedEx, UPS, Sea freight, or as per customer request
5. Lead time: 7–15 working days for most orders
Are you interested in a shaft collar manufacturer or shaft collar supplier? We are your one-stop solution for precision shaft collars, custom machining, and fast global delivery. Send us your inquiry today!
