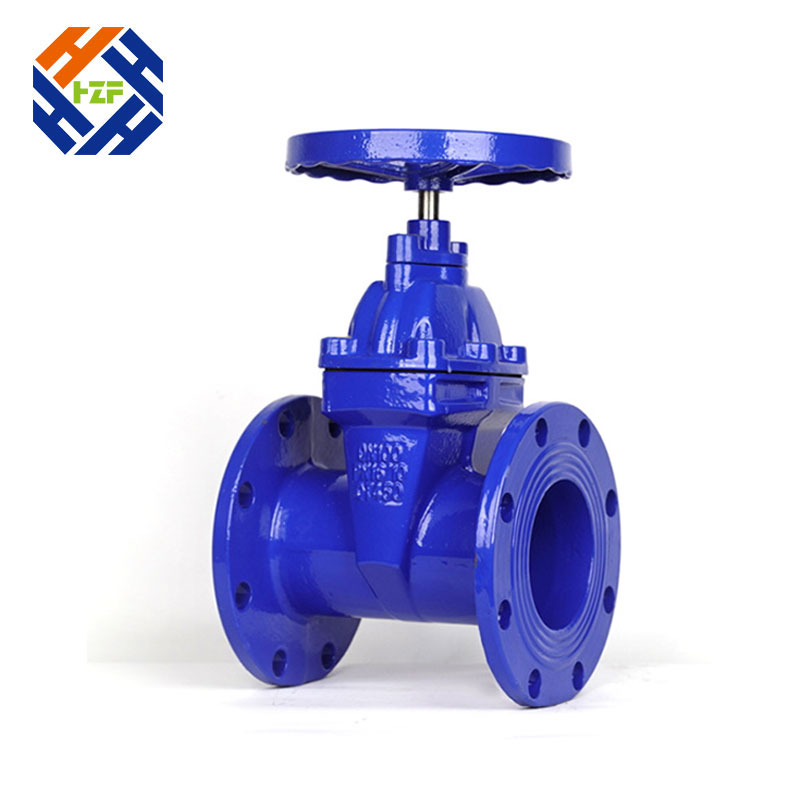

Cast Steel Gate Valve PN16-PN40
  • Cast Steel Gate Valve PN16-PN40Cast Steel Gate Valve PN16-PN40

Cast Steel Gate Valve PN16-PN40

Our valves are designed to withstand high temperatures and extreme conditions, making them ideal for demanding industrial environments. At our factory, we use only the best quality materials and innovative technology to create Cast Steel Gate Valve PN16-PN40 that meet international standards.

Send Inquiry

Product Description

Cast Steel Gate Valve PN16-PN40 Features

 Design &manufacture conform to DIN3352

 Test & Inspect conform to API 598

 Face to face dimension conforms to din3202-F15

 Flange dimension conforms to DIN 2545 PN40

 Pressure-temperature ration conform to DIN2401


Materials list:

NO.

PART

MATERIAL

NO.

PART

MATERIAL

1

BODY

GS-C25+ER308

14

GLAND FLANGE

GS-C25

2

DISC

GS-C25+ER410

15

BOLT

A193 B7

3

STEM NUT

ZQAL9-4

16

NUT

A194 2H

4

STEM

ICR13

17

YOKE

GS-C25

5

GASKET

SS304+GRAPHITE

18

PLANE BEARING

GCR

6

NONNET

GS-C25

19

BISECT CIRQUE

A276 410

7

BOLT

A193 B7

20

GLAND BEARING

1035

8

NUT

A193 2H

21

HANDWHEEL

QT400-17

9

BOLT

A193B7

22

WASHER

A3

10

NUT

A194 2H

23

NUT

A194 2H

11

PACKING

BRAID GRAPHITE

24

GREASE CUP

BRASS

12

PACKING

FLEXBLE GRAPHITE

25

NAMEPLATE

304

13

GLAND

A182 F6

26

RIVET

H62


Product Parameter (Specification)

Pressure

PN16

PN25

PN40

Size

L

H

W

L

H

W

L

H

W

50

250

305

200

250

325

200

250

325

200

65

270

354

200

270

363

200

270

370

200

80

280

402

250

280

415

250

280

430

250

100

330

437

250

330

456

300

330

480

300

125

360

496

300

360

505

350

360

532

350

150

390

541

350

390

556

400

390

589

400

200

460

699

400

460

744

450

460

783

450

250

530

815

450

530

864

500

530

888

500

300

630

914

500

630

948

550

630

965

550

350

690

1189

550

690

1269

600

690

1285

600

400

750

1350

600

750

1450

600

750

1512

600
