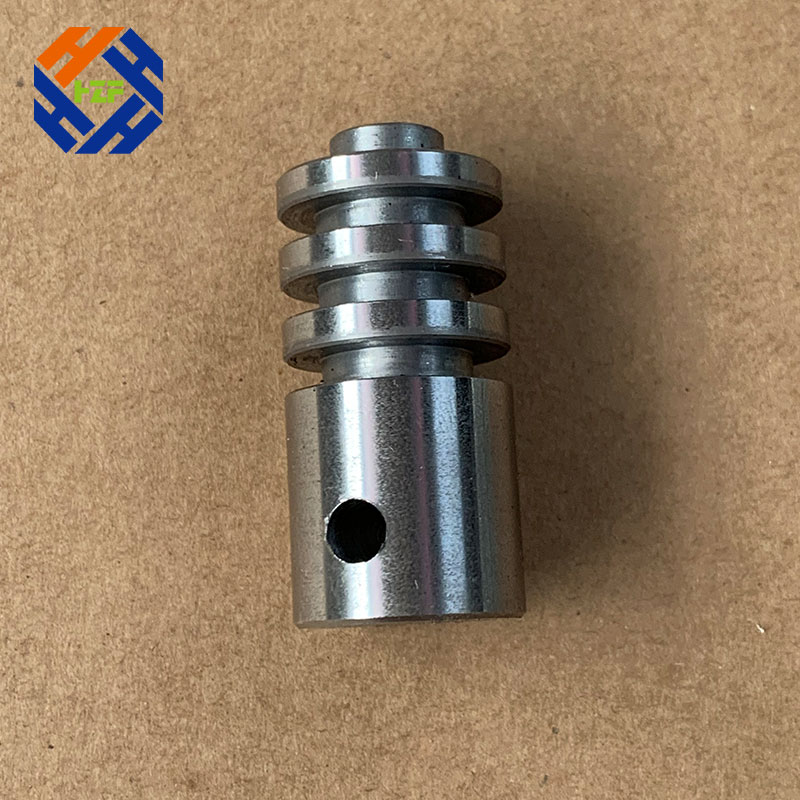

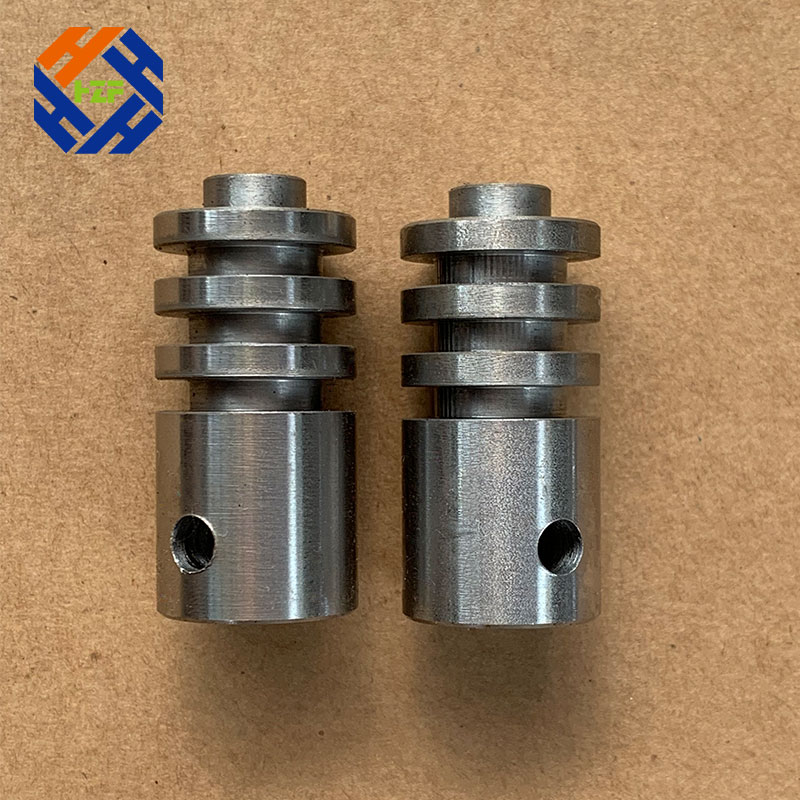

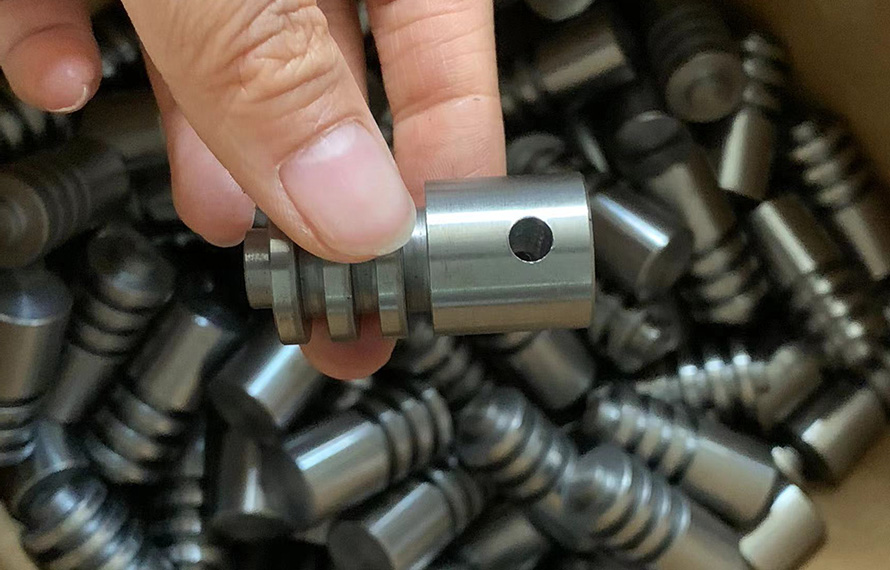

CNC Machined Piston Part

Send Drawing Now

The CNC Machined Piston Part is an essential component in many motion control and sealing applications. Machined using advanced CNC turning and milling equipment, this part delivers tight tolerances, excellent surface finish, and reliable repeatability—key factors in systems where precision is non-negotiable. With our professional engineering support, each piston part can be adapted for specific stroke, pressure, and performance requirements.

Our machining center is equipped with 3-, 4-, and 5-axis CNC machines, allowing us to produce even the most complex CNC Machined Piston Part designs efficiently and consistently. From one-off prototypes to large-scale runs, we support full customization including material selection (aluminum, stainless steel, carbon steel, brass), surface treatments, and dimensional modifications.

Unlike cast or forged alternatives, the CNC Machined Piston Part offers superior dimensional accuracy and repeatability. It is ideal for clients who require dependable component integration into larger assemblies such as compressors, pumps, pneumatic actuators, or hydraulic systems. We support reverse engineering for clients with legacy parts lacking technical drawings. We also offer a wide range of custom CNC turning parts for clients requiring similar precision features in other components.

Product Parameter (Specification)

Product Feature And Application

Product Features:

• High concentricity and dimensional accuracy up to ±0.01mm

• Smooth surface finish (Ra ≤ 1.6μm) suitable for dynamic motion

• Compatible with heat treatment and anti-corrosion surface finishes

• Can be threaded, slotted, cross-drilled, or grooved upon request

• Fully customizable according to 2D/3D CAD models

Each CNC Machined Piston Part is produced under tight process control to ensure that all critical dimensions and functional areas are within tolerance. Custom packaging, barcoding, and part marking are also available to support your internal logistics.

Applications

The CNC Machined Piston Part is widely used in:

•Automotive brake systems and engine actuators

•Industrial automation systems and robotic assemblies

•Pneumatic cylinders and hydraulic pumps

•Medical and laboratory fluid control systems

•Marine propulsion and steering systems

Its ability to perform under variable loads and high speeds makes it a trusted choice across industries where reliability and repeatability are critical.

Packaging & Shipping Options

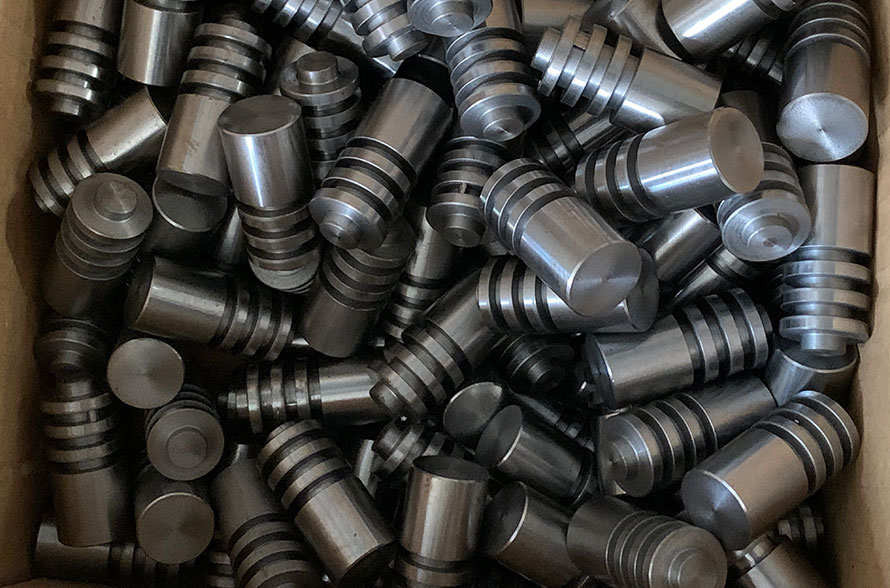

Each CNC Machined Piston Part is carefully packed to prevent damage during international shipping. Standard packaging includes:

•Anti-rust oil coating

•PE bags or bubble wrap

•Multi-layer corrugated cartons

•Wooden crates or pallets for large batches

We offer flexible shipping methods via DHL, FedEx, UPS, or sea freight with full export documentation support. Lead time typically ranges from 7–20 days depending on quantity and complexity.

Quality Control & Inspection

To ensure every CNC Machined Piston Part meets customer expectations, we implement the following inspection processes:

• Incoming raw material inspection with material certificates (SGS, RoHS, etc.)

• In-process dimension checks using calipers, micrometers, and gauges

• Final inspection using coordinate measuring machines (CMM) and profile projectors

• Surface roughness and hardness testing when required

• Quality control documents including inspection reports and process traceability

All parts are produced under ISO 9001:2015-certified procedures. Clients may request third-party inspections or special certifications

Why Choose Our Heavy Duty Trailer Hitch Balls?

Choosing the right supplier for your CNC Machined Piston Part can significantly impact your product performance and lead time. Here’s why clients choose us:

• Over 15 years of CNC machining experience

• Complete in-house production from raw material to surface treatment

• Ability to handle both low-volume prototypes and high-volume production

• Export-ready with experience serving over 30 countries

• Support for NDA projects, confidential design handling, and rapid quotation

We are not just a machining workshop—we are your engineering partner for long-term cooperation.

Get a Fast Quote Today

Ready to take the next step with your CNC Machined Piston Part project? Whether you need a prototype or full-scale production, we’re here to deliver precision, speed, and reliability. Send us your drawings or samples—our engineering team will review your requirements and provide a detailed quotation within 24 hours.

Email us at: info@hzfcasting.com

Whats App: +86 18661715326

Upload your drawing (STEP, IGS, DWG, PDF)

Custom packaging, flexible MOQ, and fast global shipping available

Let’s turn your design into reality—request your fast quote now!

FAQ

Q1: Can you produce the CNC Machined Piston Part based on my sample only?

A1: Yes, we can reverse-engineer from a physical sample and create 2D/3D drawings before production, even without existing technical documentation.

Q2: What’s your minimum order quantity for CNC Machined Piston Parts?

A2: Our MOQ is flexible, typically starting from 50 pcs. For custom designs or first-time cooperation, we also support smaller trial orders.

Q3: Which file formats do you accept for custom piston machining?

A3: We accept STEP, IGS, DWG, DXF, and PDF. If you need help converting or modifying files, our engineering team is ready to assist.

Q4: How long does it take to receive my CNC Machined Piston Part order?

A4: Standard lead time is 7–15 working days after order confirmation. Complex or large-volume orders may require additional time, which we will communicate clearly.

Q5: Can I request specific surface finishes for corrosion or wear resistance?

A5: Absolutely. We provide anodizing, black oxide, zinc plating, nickel plating, and other finishes based on your part function and environment.
